Ray Optics and Optical Instruments - Class 12 Physics Notes

1 Read the chapter ~9 min

🎯 Key Points

Mirror formula: 1/v+1/u=1/f, f=R/2; Lens formula: 1/v−1/u=1/f (note the sign difference from mirrors)
Snell's law: n₁sinθ₁=n₂sinθ₂; TIR occurs only going denser→rarer when θ>critical angle, sinθc=1/n
Lens power P=1/f (dioptres); combined power of lenses in contact: P=P₁+P₂
Magnification: mirrors m=−v/u; lenses m=v/u
Compound microscope magnification = m_objective × m_eyepiece; telescope M=f_objective/f_eyepiece

Reflection

Laws of reflection: angle of incidence = angle of reflection
Mirror formula: 1/v + 1/u = 1/f; f = R/2
Magnification: m = -v/u = h_i/h_o
Sign convention: distances measured from pole; incident light direction is positive

Concave mirror ray diagram with an object drawn as a candle on the principal axis, the focal point F marked, and the parallel ray and focal ray reflecting to form an inverted real image

Concave mirror ray construction: a ray parallel to the axis reflects through F, and a ray through F reflects parallel, locating the inverted real image. Image: Maxmath12, CC0, via Wikimedia Commons.

Refraction

Snell's law: n₁·sinθ₁ = n₂·sinθ₂
Refractive index: n = c/v = sin(i)/sin(r)
Total Internal Reflection: occurs when light goes from denser to rarer medium and θ > θ_c
Critical angle: sin(θ_c) = n₂/n₁ (= 1/n for air-glass interface)

Lenses

For an object placed beyond 2F, a convex lens forms a real, inverted, and diminished image between F and 2F on the other side, located where the refracted principal rays intersect.

Lens formula: 1/v - 1/u = 1/f
Lens maker's equation: 1/f = (n-1)(1/R₁ - 1/R₂)
Power: P = 1/f (in dioptres); P_combined = P₁ + P₂
Magnification: m = v/u

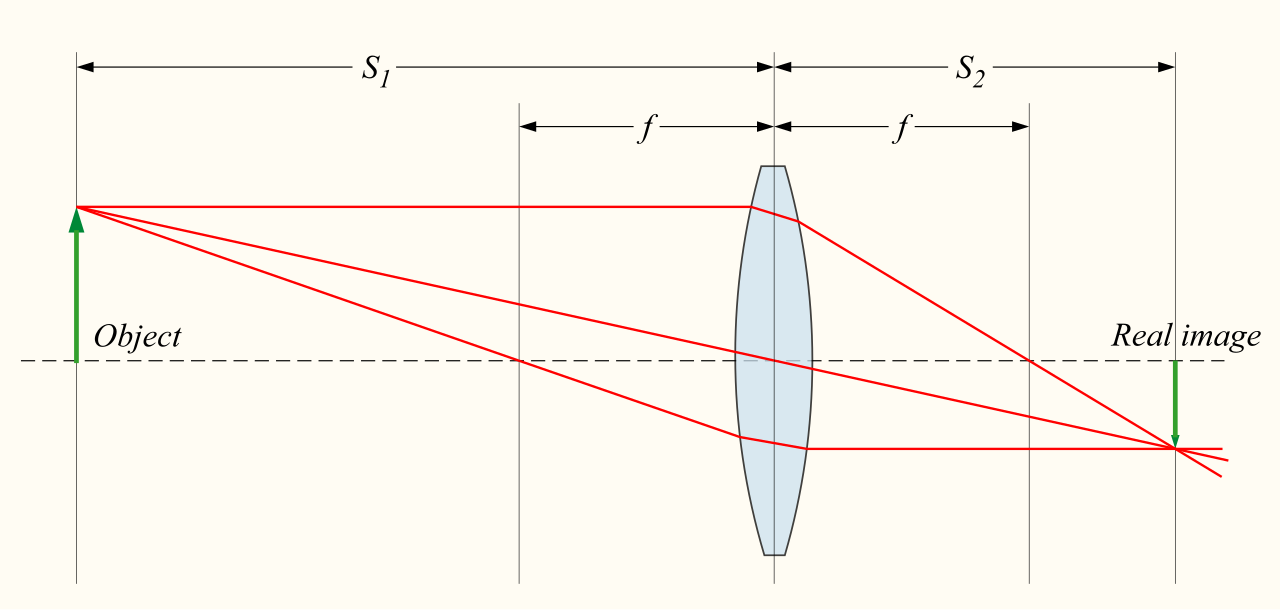

Convex lens ray diagram with an object arrow at distance S1 on the left, focal lengths f marked either side of the lens, and three construction rays converging to form an inverted real image at distance S2 on the right

Real image formation by a convex lens, the geometry behind 1/v − 1/u = 1/f and m = v/u. Image: DrBob, CC BY-SA 3.0, via Wikimedia Commons.

Optical Instruments

Compound microscope: total magnification = m_obj × m_eye
Telescope (astronomical): M = f_obj/f_eye
Normal adjustment: image at infinity

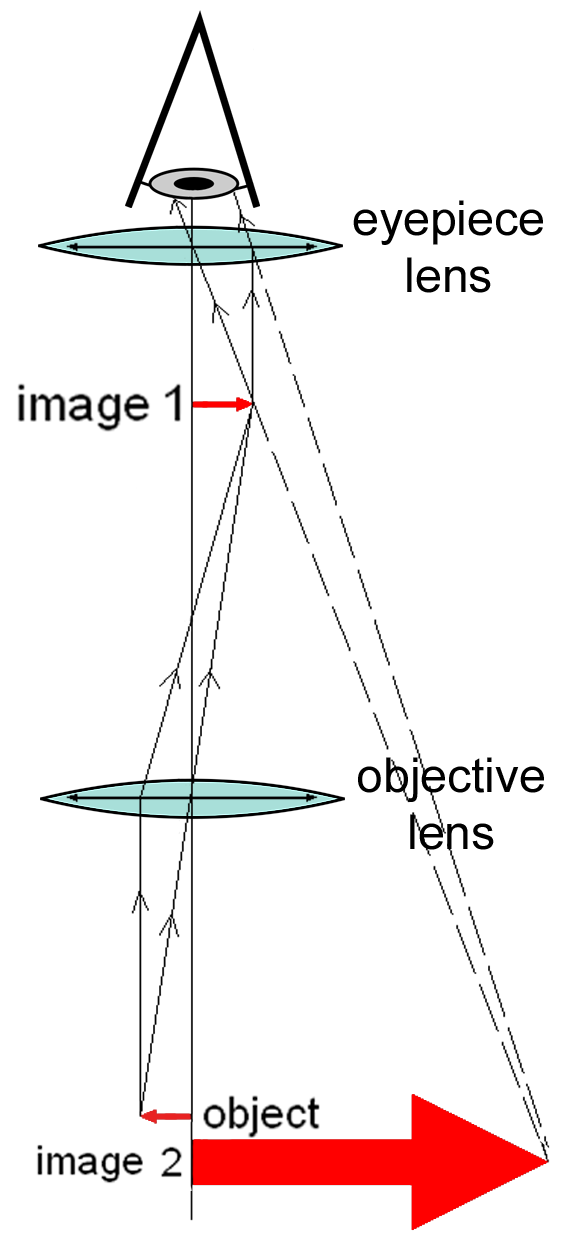

Ray diagram of a compound microscope showing the object, objective lens forming intermediate image 1, eyepiece lens, the eye, and the enlarged virtual final image 2

Compound microscope: the objective forms a real intermediate image which the eyepiece magnifies further, so M = m_objective × m_eyepiece. Image: Fountains of Bryn Mawr, CC BY-SA 3.0, via Wikimedia Commons.

Refraction at a Spherical Surface and Apparent Depth

For refraction at a single spherical surface: n₂/v − n₁/u = (n₂ − n₁)/R (all distances from the pole, sign convention applied)
Applying this at both surfaces of a thin lens gives the lens maker's formula 1/f = (n − 1)(1/R₁ − 1/R₂)
Apparent depth: an object in a denser medium seen from above appears raised - real depth / apparent depth = n (refractive index)
This is why a pool looks shallower than it is and a stick appears bent at the water surface; normal shift = t(1 − 1/n)

Refraction Through a Prism

For a prism of angle A, the ray relation is A + δ = i + e, and A = r₁ + r₂ (r = refraction angles inside)
As the angle of incidence varies, deviation δ passes through a minimum value δ_m, where the ray passes symmetrically (i = e, r₁ = r₂)
Prism formula: n = sin[(A + δ_m)/2] / sin(A/2) - used to measure refractive index
Thin prism (small A): deviation δ = (n − 1)A, independent of the angle of incidence

Dispersion and Scattering of Light

Dispersion: white light splits into its colours (VIBGYOR) through a prism because refractive index depends on wavelength (violet bends most, red least)
Angular dispersion = δ_violet − δ_red = (n_v − n_r)A; dispersive power ω = (n_v − n_r)/(n − 1)
Rayleigh scattering: intensity of scattered light ∝ 1/λ⁴, so shorter (blue) wavelengths scatter far more than red
This explains the blue sky (blue scattered in all directions) and red sunrise/sunset (blue scattered away over the long slant path, leaving red to reach the eye)

Total Internal Reflection: Applications

Optical fibres: light is guided along a thin glass fibre by repeated total internal reflection, even around bends - the basis of high-speed data and endoscopy
Sparkle of diamond: its very high refractive index gives a small critical angle (≈ 24°), so light entering is repeatedly totally internally reflected before emerging
Mirage: on a hot day, layers of air near the ground are less dense; light from the sky bends and undergoes TIR, creating a shimmering water-like image
Totally reflecting prisms: right-angled glass prisms (critical angle ≈ 42°) turn light through 90° or 180° in periscopes and binoculars with no loss

Optical Instruments in Detail

Simple microscope (magnifying glass): magnifying power M = 1 + D/f when the image is at the near point D (25 cm); M = D/f when image is at infinity
Compound microscope: M = (L/f_o)(D/f_e) approximately, where L is the tube length; both focal lengths are kept small for high magnification
Astronomical telescope: in normal adjustment M = f_o/f_e with tube length f_o + f_e; a large objective focal length and aperture give high magnification and resolving power
Telescope objectives are large to gather more light and improve resolution; microscope objectives are small-focal-length lenses close to the object

🚀 JEE Advanced Edge

Combination of lenses with separation: For two thin lenses separated by distance d, the equivalent focal length is 1/F = 1/f₁ + 1/f₂ − d/(f₁f₂) - reduces to the simple P=P₁+P₂ rule only when d=0 (lenses in contact).

Silvering one face of a lens: A plano-convex lens with its curved/flat face silvered behaves as an equivalent mirror; combine the lens power (light passes through once) with the mirror power (reflection) and the lens power again (light passes back through) - Power_eq = 2P_lens + P_mirror - a classic JEE "lens-mirror" combination problem.

Worked problem: An object is placed 30 cm from a convex lens of focal length 20 cm. Find the image position and magnification. Approach: Using 1/v−1/u=1/f with u=−30: 1/v = 1/20 + 1/(−30) = (3−2)/60 = 1/60 → v=60 cm (real image, same side as where light exits). m=v/u=60/(−30)=−2 (inverted, magnified 2×).

Spherical Mirrors and the Mirror Formula

For a spherical mirror the focal length f equals half the radius of curvature: f = R/2, valid for paraxial rays close to the principal axis.
The mirror formula relates object and image distances: 1/v + 1/u = 1/f, using the Cartesian sign convention with distances measured from the pole.
Linear magnification m = -v/u = height of image / height of object; a negative m denotes a real, inverted image.
A concave mirror gives a real, inverted image when the object lies beyond the focus, and a virtual, erect, magnified image when the object is between pole and focus.
A convex mirror always forms a virtual, erect, diminished image, giving a wider field of view (used as rear-view mirrors).
Sign convention: distances measured against the incident light and heights below the axis are taken negative.

Lens Maker's Formula and Power of a Lens

The lens maker's formula is 1/f = (n - 1)(1/R₁ - 1/R₂), linking focal length to refractive index and the two surface radii.
The thin lens formula 1/v - 1/u = 1/f uses the same sign convention as mirrors, with f positive for a converging (convex) lens.
Power of a lens P = 1/f (in metres) is measured in dioptres (D); it is positive for convex and negative for concave lenses.
Magnification of a lens is m = v/u = height of image / height of object.
If the lens is placed in a medium of refractive index n_m, its focal length changes because the effective factor becomes (n/n_m - 1).

Combination of Thin Lenses in Contact

For thin lenses in contact the net focal length obeys 1/F = 1/f₁ + 1/f₂ + 1/f₃ + ...
Powers add algebraically: P = P₁ + P₂ + P₃ + ..., which is why the dioptre is a convenient unit for combinations.
The total magnification is the product of the individual magnifications: m = m₁ x m₂ x ...
Combining a convex and a concave lens can correct chromatic aberration (an achromatic doublet).
Lens combinations are the basis of compound optical instruments such as microscopes and telescopes.

The Human Eye and Defects of Vision

The eye focuses light on the retina; accommodation is the ability of the eye lens to change focal length by ciliary muscle action.
The near point (least distance of distinct vision) is about 25 cm and the far point is at infinity for a normal eye.
Myopia (short-sightedness): the far point is nearer than infinity; corrected using a diverging (concave) lens.
Hypermetropia (long-sightedness): the near point is farther than 25 cm; corrected using a converging (convex) lens.
Presbyopia arises from weakening ciliary muscles with age and may need bifocal lenses.
Astigmatism, caused by an unevenly curved cornea, is corrected with cylindrical lenses.

2 Revise ~3 min before the exam

📐 Formula Sheet

Mirror formula: 1/v + 1/u = 1/f, with f = R/2 | Magnification: m = −v/u = h'/h
Lens formula: 1/v − 1/u = 1/f | Magnification: m = v/u
Lens maker's formula: 1/f = (n − 1)(1/R₁ − 1/R₂)
Power: P = 1/f (in metres), unit dioptre | lenses in contact: P = P₁ + P₂
Refraction: n₁sin i = n₂ sin r | n = c/v
Critical angle: sin C = 1/n (total internal reflection when i > C)
Prism: A + D = i + e | at minimum deviation n = sin((A + D_m)/2)/sin(A/2)
Microscope: M = (v₀/u₀)(1 + D/f_e) | Telescope: M = f₀/f_e
Sign convention: distances measured against the incident light are negative

3 Practice apply it

✍️ Worked Examples

Example 1 - Image in a concave mirror
Q: An object is placed 30 cm from a concave mirror of focal length 10 cm. Find the image position and magnification.
Step 1 - Apply signs: u = −30 cm, f = −10 cm (both in front of the mirror).
Step 2 - Mirror formula: 1/v + 1/(−30) = 1/(−10) ⇒ 1/v = −1/10 + 1/30 = −3/30 + 1/30 = −2/30.
Step 3 - Solve: v = −15 cm (real, in front of the mirror).
Step 4 - Magnification: m = −v/u = −(−15)/(−30) = −0.5.
Answer: image 15 cm in front, real, inverted, half-size. Note: negative m always means an inverted image.

Example 2 - Critical angle
Q: Find the critical angle for a glass–air interface, where n_glass = 1.5.
Step 1 - Use sin C = 1/n.
Step 2 - Substitute: sin C = 1/1.5 = 0.667.
Step 3 - Invert: C = sin⁻¹(0.667) ≈ 41.8°.
Answer: ≈ 41.8°. Note: total internal reflection only happens going from denser to rarer, and only beyond this angle - this is how optical fibres trap light.

Example 3 - Combining two lenses
Q: A converging lens of f = 20 cm is placed in contact with a diverging lens of f = −30 cm. Find the combined focal length.
Step 1 - Convert to powers (in metres): P₁ = 1/0.2 = +5 D, P₂ = 1/(−0.3) = −3.33 D.
Step 2 - Add: P = 5 − 3.33 = 1.67 D.
Step 3 - Convert back: f = 1/1.67 ≈ 0.6 m = 60 cm.
Answer: +60 cm - still converging, but weaker. Shortcut: for lenses in contact, powers simply add.
